BEAM BREAK Sensor "REFLECTOR" > 8' or 2.44 meters
BEAM BREAK Sensor "REFLECTOR" > 8' or 2.44 meters

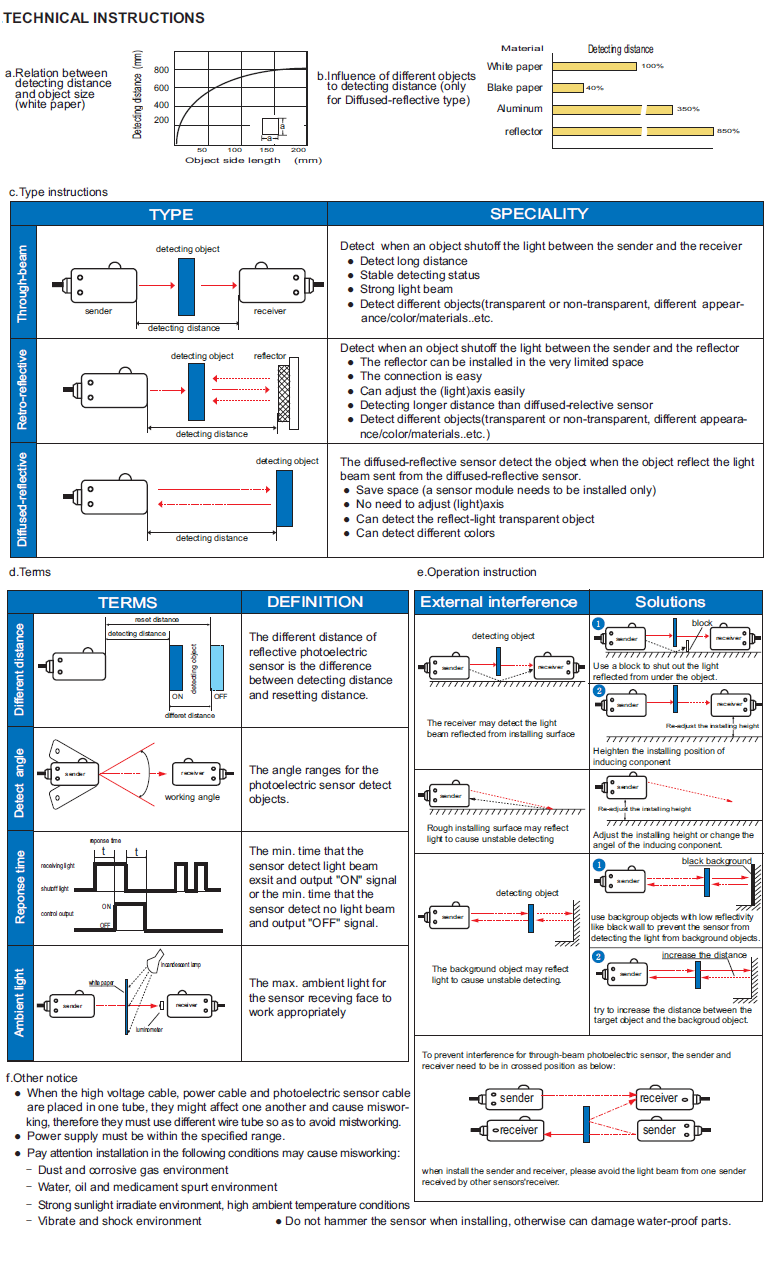

• Infrared photoelectric sensors, retro-reflective reflector type, include sensor and reflector mirror

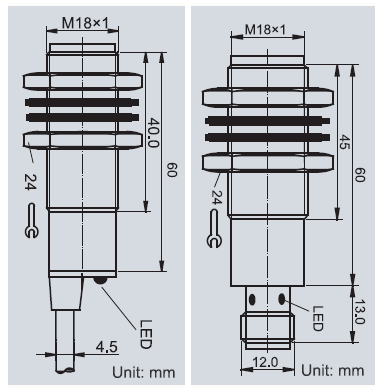

• M18 cylinder shape, metal brass housing
• Long detect distance: >8' or 2.44 meters
• Output: PNP or NPN, NO or NC or NO+NC output, or AC 2 Wires NO or NC output
• DC 3 wires or 4 wires: DC10-30V DC, AC 2 wires: AC 90-250V(or AC24V)
• Light resource: Infrared invisible light, red LED indicator
• Fast response: max. 3ms
• Strong anti-shock and anti-vibration
• Non-contact object detection: avoid the photoelectric sensor contacting the object directly, protect the inducing component from damage, and extend the operation life of the sensor.
• Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.
• Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflects and identify the colors.
• High precision: precise electron circuit, can detect tiny objects with accurate position.
• Reliable quality, CE approved, short circuit and polarity reversed protection
• IP ratings: IP67 ratings, water and dust proof
