BEAM BREAK Sensor "THROUGH BEAM" > 30' or 9.14 meter

BEAM BREAK Sensor "THROUGH BEAM" > 30' or 9.14 meter

$36.00 USD
$36.00 USD
Sale Sold out

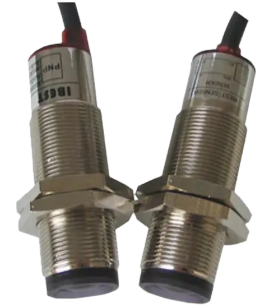

  • Infrared photoelectric sensors, through-beam type, include sender and receiver.
  • Long detect distance: > 30' or 9.14 meters
  • Output: PNP or NPN, NO or NC or NO+NC output, or AC 2 Wires NO or NC output.
  • DC 3 wires or 4 wires: DC10-30V DC, AC 2 wires: AC 90-250V(or AC24V).
  • Light resource: Infrared invisible light, red LED indicator.
  • Fast response: max. 5ms.
  • Strong anti-shock and anti-vibration.
  • Non-contact object detection: avoid the photoelectric sensor from contacting the object directly, protect the inducing component from damage and extend the operation life of the sensor.
  • Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid....etc.
  • Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflects and identify the colors.
  • High precision: precise electron circuit, can detect tiny objects with accurate position.
  • Reliable quality, CE approved, short circuit and polarity reversed protection.
  • IP ratings: IP67 ratings, water and dust proof.
